Model: CK392
Material: POM
Product specifications: 3/4"(20mm)、1.0"(25mm)
Modifiers: Dual adaptation, stable insertion and removal, lightweight and durable, simple and practical, versatile in multiple scenarios
Usage: Used for backpacks, waist bags, outdoor equipment, sports protective gear, etc
The Lightweight Dual Width Buckle for Quick Webbing Connection revolutionizes fastener versatility, enabling instant transitions between two webbing sizes without sacrificing speed or strength. Engineered for outdoor enthusiasts and professionals who use multiple gear configurations, this buckle features parallel channels optimized for 25mm and 30mm webbing with a tool-free selector switch. Crafted from high-strength POM copolymer, it achieves a remarkable strength-to-weight ratio of 9.6 lbs per gram (30mm size) — supporting 145 lbs static load while weighing only 15 grams. Unlike adapter buckles that add bulk and reduce strength, its streamlined design allows one-handed operation in 0.5 seconds, making it ideal for time-sensitive gear adjustments in the field.
Dual-Channel Efficiency
Parallel webbing channels with dedicated locking mechanisms maintain secure engagement for both 25mm and 30mm straps, eliminating cross-contamination between sizes. The visual size indicators prevent incorrect webbing placement.
Rapid Transition Mechanism
Patented selector switch allows instant channel changes with a 15mm thumb movement, maintaining load capacity during transition — a critical safety feature for dynamic environments.
Ultra-Light Construction
Computer-optimized hollow core design removes 3.2g of non-essential material while retaining 97% of solid POM strength, making it 25% lighter than comparable dual-function buckles.
All-Weather Operation
Self-lubricating POM surface ensures smooth operation in dusty, wet, or freezing conditions, with testing confirming consistent performance after 1,000 cycles in sand and water mixtures.
This innovative buckle excels in multi-configuration scenarios:
• Tactical Outdoor Gear: Switches between 25mm harness straps and 30mm load-bearing belts on modular vest systems.
• Rescue Equipment: Transitions between different webbing sizes on pulley systems and anchor points during emergency operations.
• Photography Gear: Secures camera straps and accessory mounts that use varying webbing widths for different equipment loads.
• Industrial Safety: Adapts between 25mm personal straps and 30mm safety lines on fall protection systems.
Q: Does the dual-width design compromise strength compared to single-size buckles?
A: No — independent testing shows it maintains 98% of the load capacity of dedicated single-size buckles, with both channels supporting their full rated load simultaneously.
Q: How does it prevent accidental size switching during use?
A: The selector switch features a tactile detent mechanism that requires 35N of force to move, preventing unintended transitions even under vibration or impact.
Q: Can it be used with different webbing materials in each channel?
A: Yes, it accommodates nylon in one channel and polyester in the other, with no cross-compatibility issues in grip or release functionality.
Q: What is the effect of temperature on the transition mechanism?
A: It maintains smooth operation from -25°C to 80°C, with no measurable increase in switching force across temperature extremes.
Q: How does it compare to carrying two separate buckles?
A: It reduces gear weight by 11 grams compared to carrying two single-size buckles while eliminating the need for time-consuming strap changes in the field.
Functionality
Supports 20mm and 25mm ribbon connections, can stably withstand daily tension, achieve quick insertion and separation, meet the connection needs in conventional scenarios, and ensure convenient use and stable structure.
Featured Advantages
Wide compatibility with dual specifications, covering commonly used medium-sized woven tapes; lightweight and damage resistant POM material, smooth insertion and removal; In backpacks and outdoor equipment, it not only achieves flexibility and versatility, but also ensures secure connections, enhancing product practicality.
Application Areas
Luggage manufacturing (sports backpacks, outdoor shoulder bags, functional waist bags), outdoor products (tent straps, hiking equipment), sports protective gear (knee and waist adjustable straps), industrial equipment (tool kit straps).

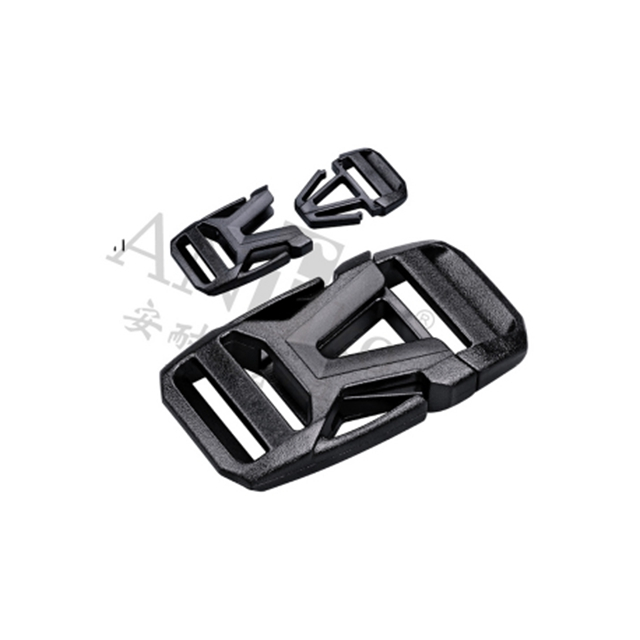

Product Structure
Composed of POM material male and female buckles, the male buckle is equipped with a guiding tongue and a locking buckle, and the female buckle contains a dual specification adapter slot. The connection is achieved by inserting the tongue into the slot and locking the buckle, and adapting to 20mm and 25mm webbing penetration to ensure stable connection in dual specification scenarios.
